Cosmetic Grade Bag-on-Valve Aerosol System
For Skincare, Hair Mousse and Facial Sprays

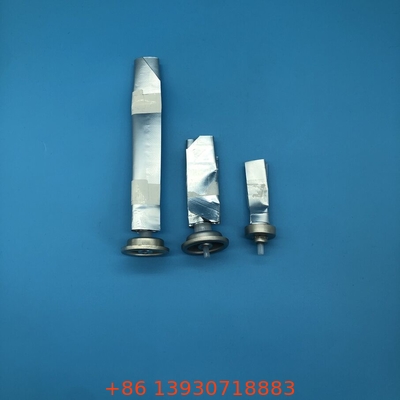

Our Bag-on-Valve (BOV) system is a next-generation aerosol packaging technology that separates the product from the propellant using a laminated bag sealed inside the can. This innovative design ensures maximum product purity, extended shelf life, and 100% product emptying with no contamination.
Featuring one-inch stainless steel female valves, our BOV solutions are ideal for cosmetics, medical sprays, household care, and food-grade applications. The eco-friendly system is propellant-efficient and enables spraying at all angles for superior versatility and user experience.
Key Features
- 100% product emptying with minimal waste
- Hygienic, sterile packaging with no propellant contact
- All-angle spraying capability, including upside-down use
- Extended shelf life through oxygen and moisture barriers
- Environmentally friendly design with reduced propellant requirements
- Customizable bag sizes and valve types available
Technical Specifications
| Model |
Max Capacity |
Length * Height (mm) |
Aerosol Can Size |
| JC-100-P250 |
300ml |
185 * 100 |
59 * 210 |
| JC-100-P200 |
220ml |
145 * 100 |
53 * 180 |
| JC-100-P150-1 |
150ml |
125 * 90 |
50 * 150/155 |
| JC-100-P100 |
120ml |
100 * 90 |
50 * 125 |
| JC-100-P80 |
80ml |
100 * 80 |
40 * 120/130 |
| JC-100-P65 |
65ml |
90 * 80 |
40 * 110/35 * 110 |
| JC-100-P50 |
50ml |
90 * 65 |
35 * 110 |
Application Scenarios
Cosmetics & Personal Care
Medical & Pharmaceutical
Food Industry
Household Products
Industrial & Automotive
Ideal for: Sunscreen, deodorants, nasal sprays, cooking oil sprays, air fresheners, lubricants, and more.
Frequently Asked Questions
How does a Bag-on-Valve system work?
The product is filled into a sealed bag inside the can, while the propellant is placed between the bag and the can wall. This separation ensures no contamination.
What are the benefits compared to traditional aerosol valves?
BOV offers 100% product dispensing, cleaner spraying, longer shelf life, and the ability to spray at any angle.
Is it suitable for pharmaceutical use?
Yes, our BOVs are ISO cleanroom manufactured and support aseptic filling and sterilization processes.
Can I request custom bag sizes and valve types?
Absolutely. We offer OEM/ODM customization for bag sizes, valves, and can designs based on customer needs.
What industries commonly use BOV?
Cosmetics, pharmaceuticals, household cleaning, automotive, food, and even veterinary care.
